iEngineering provide complete Industrial Automation Services including Testing, Supply, Installation & Commissioning.

Different Brands of Human Machine Interface (HMI)

  • SIEMENS
  • ALLEN BRADLEY
  • ABB
  • SCHNEIDER ELECTRIC

SIEMENS

Integration of hardware, software & services, information flows horizontally & vertically. Totally Integrated Automation from Siemens – The worlds leading automation concept. Holistic approach. Maximum connectivity. End-to-end consistency. Innovative & future-proof.

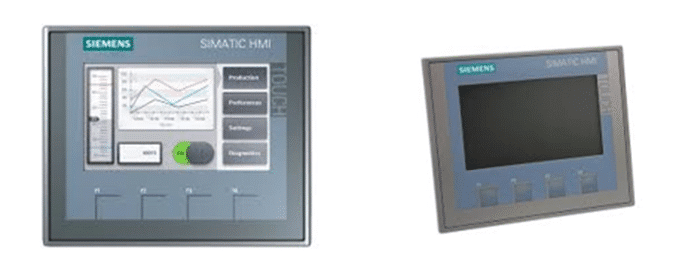

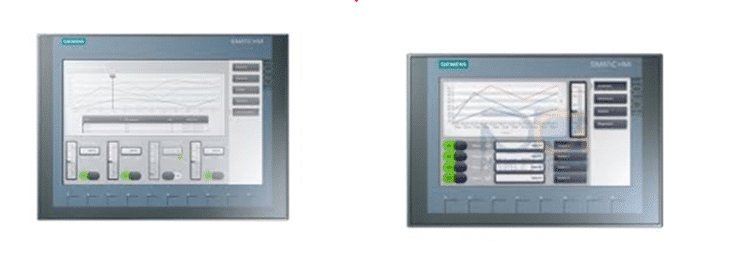

Panel for HMI tasks of limited complexity. 4 inch widescreen Touch panel with color display and 4 function keys. particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
7 inch widescreen touch panel with color display and 8 function keys. Basic Panel for HMI tasks in the lower and medium performance range with SIMATIC S7-1200 controllers but also with other PLCs.

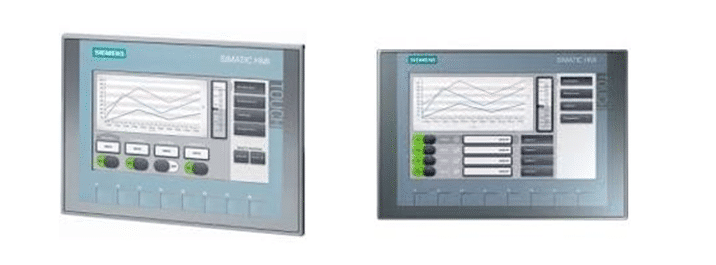

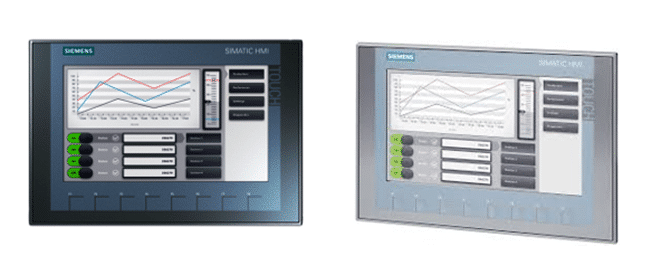

9 inch widescreen touch panel with color display and 8 function keys. With regard to screen size and resolution the KTP900 meets higher requirements. The KTP900 Basic is only available in a version with an Ethernet interface for the use in PROFINET networks.
12 inch widescreen touch panel with color display and 10 function keys. The KTP1200 Basic is the ideal HMI-component for the medium and upper S7-1200 controller systems. With regard to screen size and resolution the KTP1200 meets higher requirements.

ALLEN BRADLEY

Experience our latest innovations and explore Allen‑Bradley products at Automation Fair At Home. This online experience features virtual tours and on demand sessions showcasing the power and value of our IT/OT expertise..

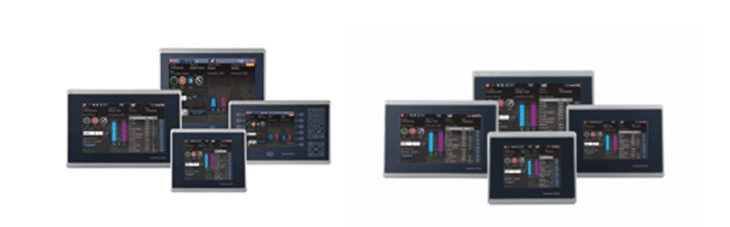

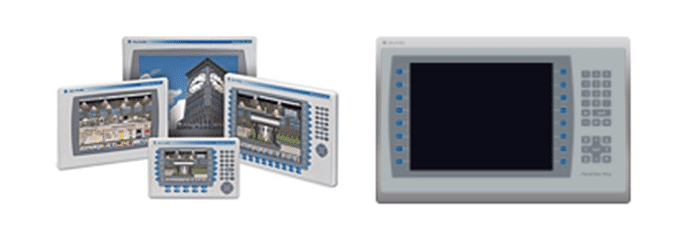

PanelView 5000 Graphic Terminals offer an intuitive, modern design and provide enhanced Logix integration that uses Studio 5000 View Designer software. This integration allows engineers to enter configuration information once and use it for the entire automation design.
PanelView Plus 7 Graphic Terminals are available in standard and performance versions and offer display sizes from 4...19 in. with widescreen options.

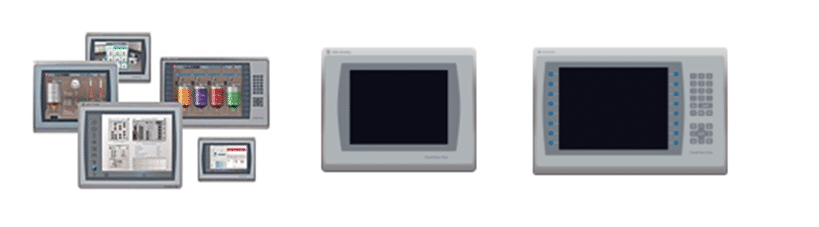

PanelView Plus 6 Graphic Terminals let you monitor, control, and display application status information graphically. These terminals offer the open-platform flexibility of the Windows CE operating system.

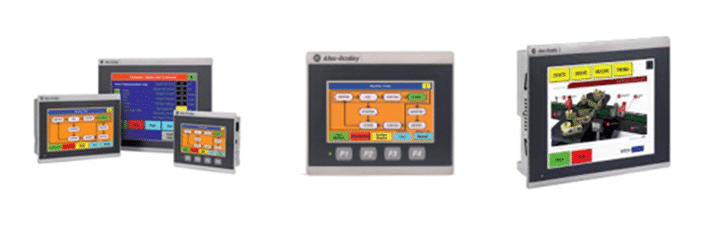

PanelView 800 Graphic Terminals are panel-mounted display devices that offer keypad or touch screen options for operator input. These graphic terminals are available in 4...10 in. display sizes and are compatible with micro and small controllers.

ABB

ABB’s automation and digital solutions bring increased safety, quality and efficiency to … Process Automation and Digitalization … Measurement Products

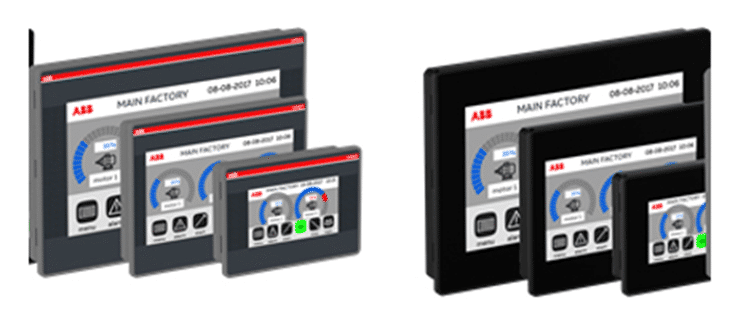

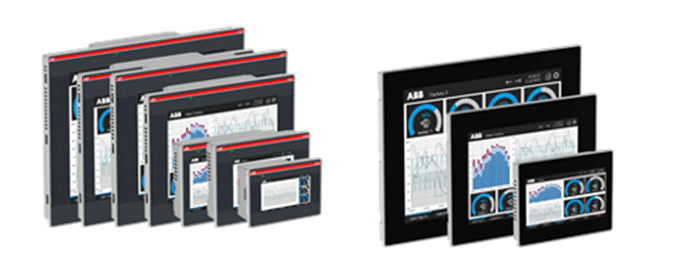

The economical CP600-eCo control panel, with screen sizes from 4.3” to 10.1” widescreen, is aimed for standard functions and high usability for clear interaction with the operation process.

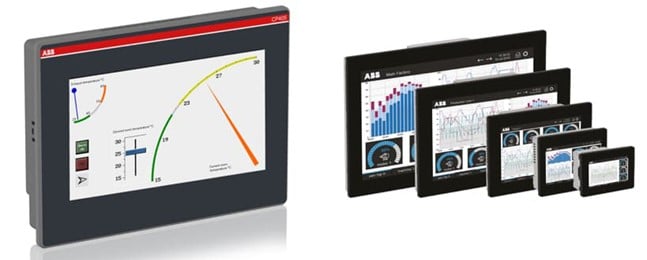

The robust CP600 HMI, with screen sizes from 4.3” to 15” widescreen or standard aspect ratio, provides high visualization performance, versatile communication and representative design for machines and systems. This range includes 7” control panels in sanitary design, which withstand.
The CP600-Pro HMI, with screen sizes from 5” to 21.5” widescreen, comes with high end visualization performance, multi-touch operation, versatile trendsetting communication and representative design.

SCHNEIDER ELECTRIC

Schneider Electric Is Leading The Digital Transformation Of Industrial Automation Markets. Energy Efficiency. Remote Everywhere. Industry Specific

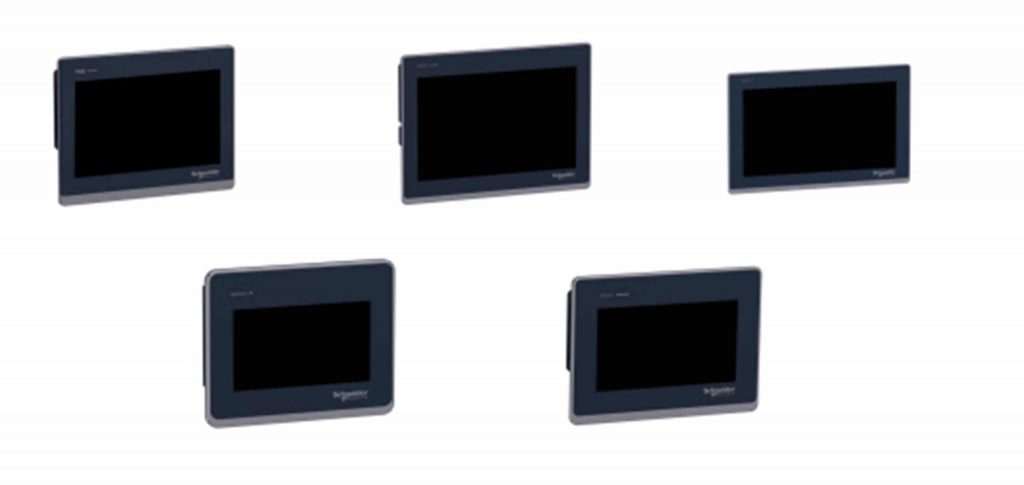

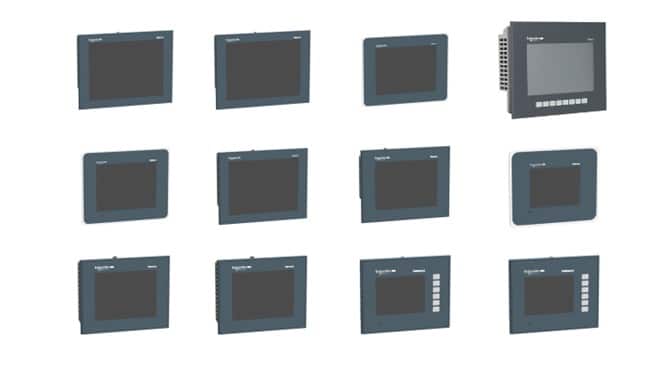

Harmony ST6 and STM6, Basic HMI, delivering an intuitive user experience utilizing the latest software and visualization innovations from EcoStruxure Operator Terminal Expert. Harmony STW6, Basic Web HMI, is a complement ready-to-use version available with HTML5 Browser.

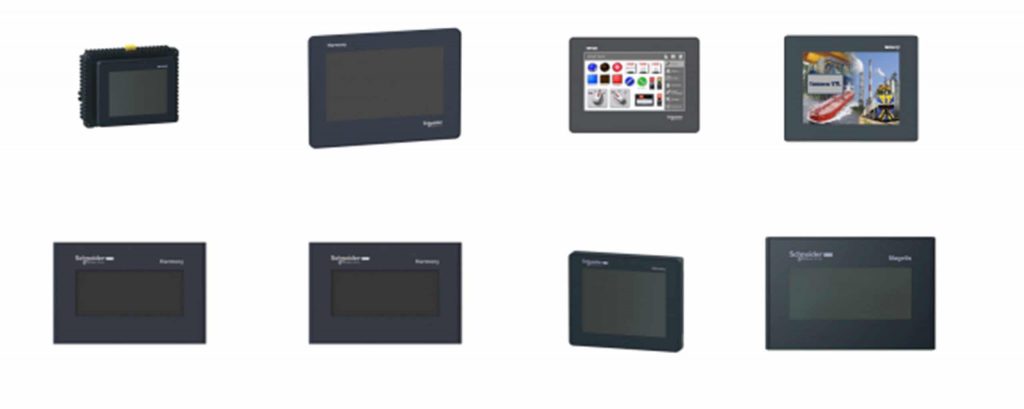

The new Magelis STO et STU boost the Magelis Small Panels range : more flexibility, more communication, easy and fast revolutionary mounting system… Powered by Vijeo Designer, bring a cost-effective solution to all machines builders
Part of Harmony. HMI panels with optimised features more flexibility, easy and fast revolutionary mounting system.
Part of Harmony. Compact terminals
