Is it possible to insulate a junction box?

I believe it is allowed to use insulation to cover a junction box. I've never been hesitant to do so. It may be tough to locate boxes, but by manually tracing the cables, it should be possible. They can be buried under insulation as long as the insulation can be removed to gain access to the box. A box should not be covered with foamed-in-place insulation.

On land, where are Internet cables installed?

Yes, the most of them are buried. Many of them are laid beside train tracks, next to utility pipelines, or even inside ancient pipelines to obtain right-of-way. They can also be placed alongside highways or, less commonly, suspended from telephone poles. The internet is a network of wires that transmit digital data at near-light speed across large distances. The internet is transported between countries and continents via a large network of undersea cables. Smaller cables go underground within countries, eventually branching out into each of our homes

When did the undersea Internet cable get put in place?

The first undersea telegraph cable was built between England and France in 1850, predating the development of the telephone. In 1858, a cable connecting Ireland and Newfoundland was completed, but the cable's insulation failed, and it had to be abandoned. Before the Honeysuckle Creek communication antenna opened in Australia in 1965, it's likely that the US military and/or NASA used X.25 circuits or earlier communication protocols using coaxial undersea telecommunication cables.

Junctions Boxes

Q: Is it possible to extend wiring using a junction box?

Yes you can use a junction box to extend wiring. You should use a junction box if your existing wiring does not reach its intended end point. Use the correct wires for both the source and the extension. Ensure that both the gauge and the insulation meet the electrical code requirements. To extend the wires far enough to reach the new location, a junction box may be required. If the distance is shorter, the wires can be shortened and there will be no need for a junction.

A junction box is a box that can be composed of metal or plastic in electrical engineering. Additional sockets for laying cables, expanding electrical circuits, and adding lighting points are available in a range of shapes and sizes (usually round or square). When more than one electrical conduit meets, a junction of wires occurs, and we utilise junction boxes to hide the cables so that we can use any external circuit from these junction boxes.

You can use a junction box to extend wiring. You should use a junction box if your existing wiring does not reach its intended end point. Use the correct wires for both the source and the extension. Ensure that both the gauge and the insulation meet the electrical code requirements. To extend the wires far enough to reach the new location, a junction box may be required.

iEngineering can manufacture and supply Electrical and Instrument Junction Boxes.  This junction boxes can be custom built of stainless steel 316, mild steel and any other materials with IP rating of IP65.

Junction boxes are found both indoors and outdoors. A junction box is a connection of wires for power, control and instrumentation. Utilization of Junction Box helps locating fault and repair.

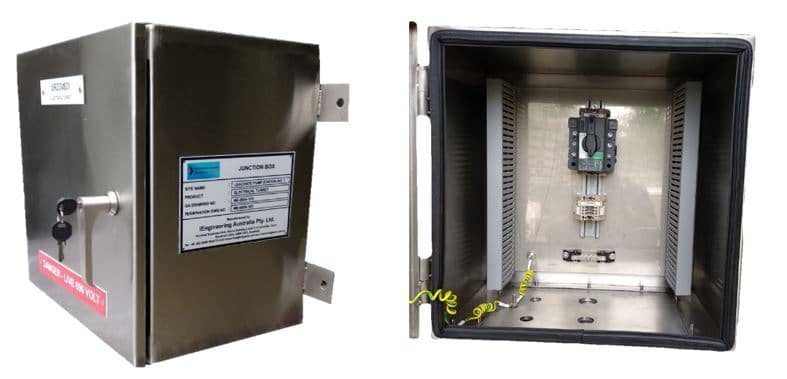

Electrical Junction Boxes

We design, manufacture and supply various sizes of Electrical Junction Boxes. These can custom built of stainless steel 316 or Mild Steel material with IP rating of IP65. Inside of junction boxes there is an isolator.

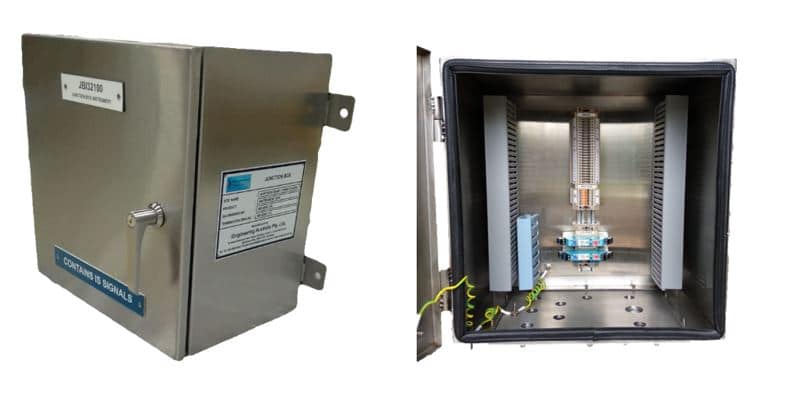

Instrument Junction Boxes

We design, manufacture and supply various sizes of Instrument Junction Boxes of different materials. These junction boxes can custom built of stainless steel 316 or Mild Steel material with IP rating of IP65. All bolts, nuts, screws, hinges, etc used in assembling the enclosure is SS316.

What are the locations of junction boxes?

At the intersections of the duct runs, there are junction boxes.
Junction boxes are used to connect numerous field instruments to the control system and are commonly found throughout the facility.
The points where the junction box would be centred should be located along with the horizontal baseline.
Each connected area's junction boxes must all have the same arrow pointing in the same direction, resulting in a uniform pattern for all interconnecting duct runs.
The outdoor instrument signal wiring junction box must be installed in its entirety, including mounting, hardware, nameplates, terminal blocks, and wiring.

Please send us an enquiry via online Custard and Download a copy of Product Flyer by
