What does an electric short circuit occur?

It occurs due to following reasons- A short circuit occurs when current bypasses the appliance via a channel with little or no resistance, such as when frayed insulation exposes a wire and allows it to touch the appliance's frame, allowing the current to travel directly to the ground. if the insulation of the wires used in the circuit is destroyed, resulting in direct contact between the live and neutral wires. As a result, the circuit's current increases. When old wires with low current capacity are used for high current equipment, there is a risk of overheating, which can result in a short circuit. A faulty plug, a faulty power cord, or a malfunction in the device might cause a short circuit.

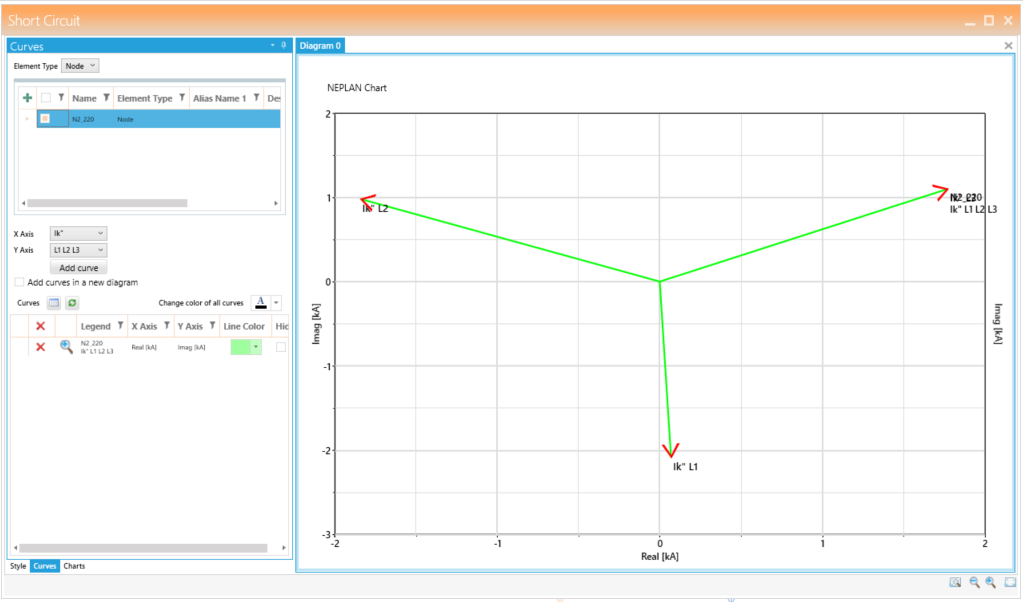

What is short circuit capacity?

short circuit capacity can refer to two things. The maximum fault current that can be generated in a worst-case scenario (3phase fault) The ability of a device or system to protect a system and withstand the fault currents in a worst-case scenario. It is the capacity of protective device connected in system to withstand the short circuit current when short circuit occur.

What is the effect of short circuiting in circuit?

When a short circuit occurs, the system's current rises to an abnormally high level, while the voltage falls to a low level. Due to the high current generated by the short-circuit, excessive heating occurs, which might end in fire or explosion. Short-circuits can sometimes take the shape of an arc, causing significant damage to the system. The low voltage caused by the fault has a significant negative impact on the power system's ability to provide service. The consumer's motors may be shut down and the power system's generators may become unstable if the voltage is low for even a few seconds.

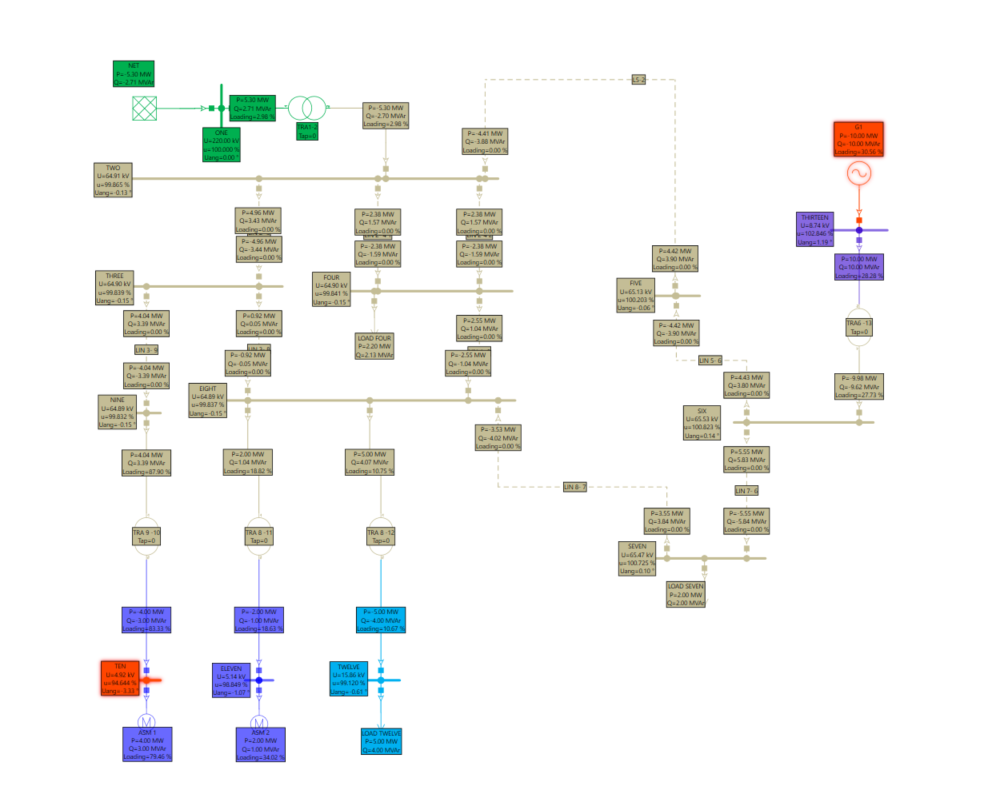

What are the types of power system analysis?

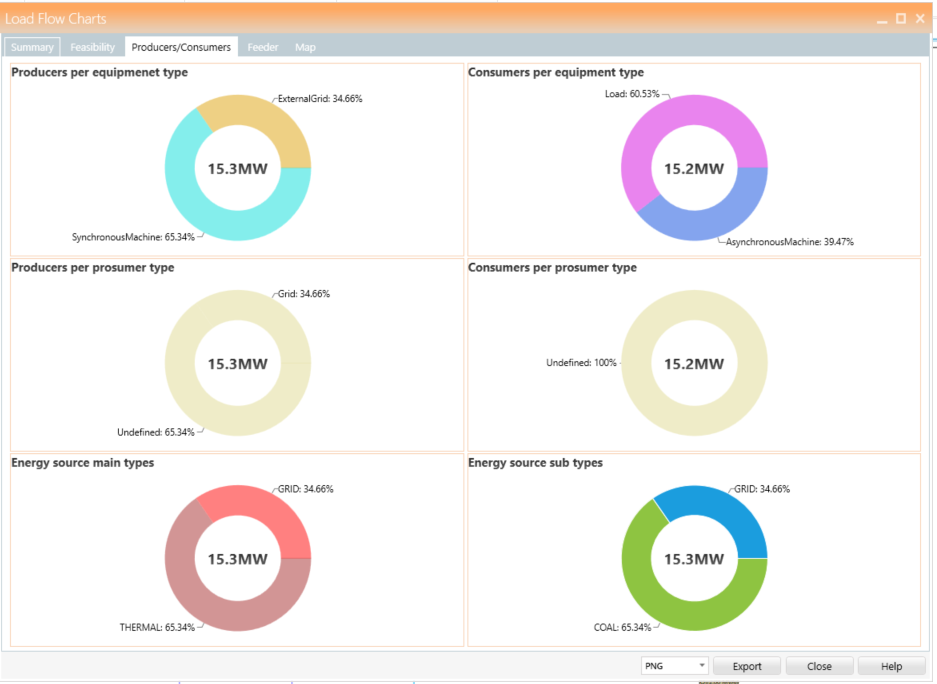

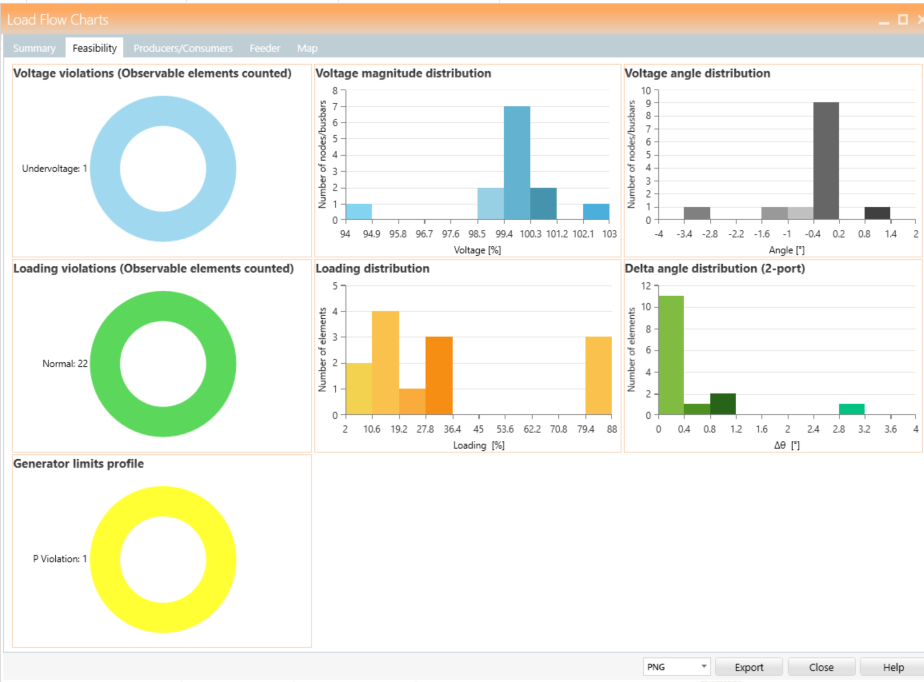

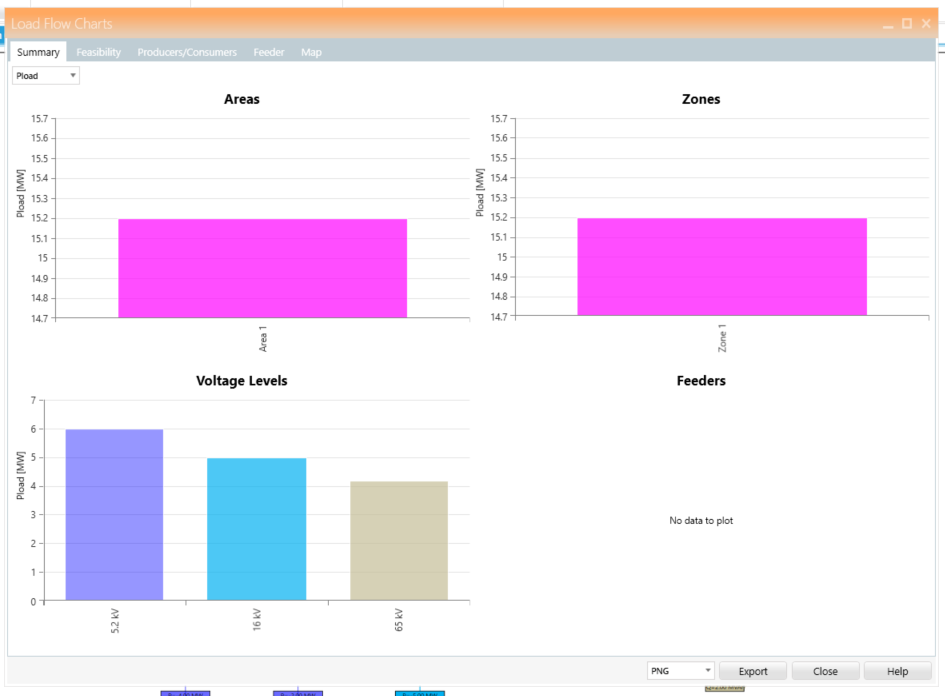

There are three types power system analysis method Power flow analysis- (Bus analysis, )- slack ,PQ , PV and PC Load flow - Current ,Voltage, active power, reactive power Fault analysis- Short circuit analysis ,Symmetrical (LLL) and unsymmetrical fault(LL,LG, LLG) Stability analysis-Voltage stability ,Rotor stability ,transient stability, steady state stability

What is the science behind a short circuit?

The science behind the short circuit can be understood by the simple Ohm’s law I= V/R OR V= IR If resistance between two point is less, then high current will be flowing between that two point which causes short circuit or A short circuit is simply a low resistance connection between the two conductors supplying electrical power to any circuit. This results in excessive current flow in the power source through the 'short,' and may even cause the power source to be destroyed. If a fuse is in the supply circuit, it will do its job and blow out, opening the circuit and stopping the current flow. A short circuit may be in a direct- or alternating-current (DC or AC) circuit. If it is a battery that is shorted, the battery will be discharged very quickly and will heat up due to the high current flow. Short circuits can produce very high temperatures due to the high-power dissipation in the circuit. If a charged, high-voltage capacitor is short circuited by a thin wire, the resulting huge current and power dissipation will cause the wire to explode.

Power System Studies & Design

iEngineering Group is the Authorised Distributor of NEPLAN Power System Analysis Software and is part of the international NEPLAN®-Consulting group. iEngineering in conjunction with the NEPLAN®-Consulting group offers a wide range of power system studies & design consultancies.

More than 600 projects all over the world have already been successfully realized. The NEPLAN®-Consulting group conducts studies to evaluate energy markets, solve electric system design, planning and operations related problems, perform system engineering, and provide equipment application expertise.

We help you to optimize the value of your energy assets and transactions, and to better design, plan and operate your transmission, distribution, industrial systems, and/or merchant plant integration projects.

Power System Studies & Design: Our Services includes

Merchant Project Siting

Distribution System Planning

Market and Individual Asset Evaluation

Reliability & RCM

Probabilistic system planning
T&D system reliability evaluation
Substation RAM studies
Integrated generation and transmission planning
Failure mode, effect, fault tree analysis

Feasibility/System Impact/Facility Upgrading

Protective Relaying and Controls

Protective system design and relay coordination
Adaptive relaying, fault location
Phasor estimation, power quality, high impedance fault detection
Integration of protection, control and monitoring
Wide-area disturbance protection and control

Transmission Capability Analysis

HVDC

AC/DC interactions and planning
Conversion of AC lines to DC
Dynamic performance & control requirements
AC/DC filter design
Reactive power requirements
Equipment specification

System Dynamics and Control

Flexible AC Transmission (FACTS)

Insulation Coordination

Harmonic Analysis

Education & Training For Power System Studies
