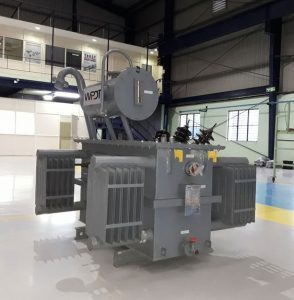

Transformers

Unit Sub-Station

The substation is compact in size, suitable for frequent shifting and for use in outdoor locations. The substation is installed and mounted on skid frame or wheels or channels and is provided with lifting hooks. The Unitized Sub-Station comprises of the following main components – Vacuum Circuit Breaker Panel in Outdoor Enclosure complete with CT, PT, Relay & Instrument Chamber.

Compact Sub-Station

Various modules of Indoor/Outdoor type Compact Sub-Stations with HT/LT switchgears are available. The Compact Sub-Station (CSS) is also known as Packaged Sub-Station (PSS). The Compact Sub-Station is a compact arrangement, which replaces conventional sub-station arrangement consisting of Pole Structure / Platform, Lightening Arresters, Load Break Switch / Vacuum Circuit Breaker, Transformer, Distribution Panel, etc. CSS is designed, keeping in mind the personal safety & aesthetics, considering HT equipment is located in high density urban places.

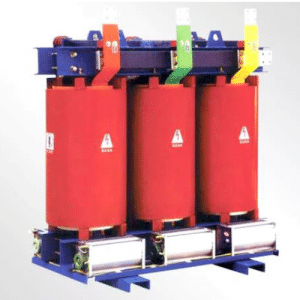

It is a pre-fabricated secondary sub-station consisting of three compartments (i.e.) HV Compartment, which houses Vacuum Circuit Breaker (VCB) or Load Break Switch (LBS), Transformer Compartment, which houses dry type /oil cooled transformer & LV Compartment, which houses ACB, MCCB, SFU, etc., as per client’s requirement.

All components are housed in an enclosure, which protects the equipment against environmental hazards & unauthorized access. The electrical equipments are cooled by natural / forced ventilationC

Special Transformers

We provide specialized transformers designed for heavy industries, captive power plant projects, hydro power projects, wind farms, solar farms, and more.

This range includes SCOTT-T connected transformers and converter duty transformers, tailored for applications such as industrial furnaces, DC ARC furnaces, copper refining, aluminum electrolysis, graphitizing furnaces, DC traction substations, and variable speed drives (VSD).
