AC CHARGERS

image 1
image 2
MicrosoftTeams-image (160)

AC Chargers

We are pleased to announce that our AC chargers has been approved by NSW Electric Vehicle Council.

AC charging stations can be available in supermarkets, shopping centers, railway & service stations, council/business/public parking lots, cafes, restaurants, resorts, residential residences & flats, and more.

iEngineering Group is proud to provide EV AC chargers. We provide 7kW, 22kW & 43kW. Firstly, this product is a single-phase and three-phase EV charging box, solely used for ac charging of electric vehicles. Secondly, the equipment adopts industrial designs. The protection level of the EV charging box reaches IP65, with good dustproof and waterproof functions, and therefore, can be operated and maintained safely outdoors.

There are 3 different versions Unsmart, Smart and OCPP 1.6J.

This series Electric vehicle charging box come in two versions:

  • The cable version
  •  The socket version.

Our Turnkey Solutions

  • Supply of EV Charger.
  • Site installation work as per Australian standards.
  • Software installation & commissioning.
  • Technical support & training.
  • Spare parts & Software upgrade.

Types

  • Unsmart version.
  • Smart version.
  • OCPP 1.6J version.

Please find below a comparison: -

S.No Parameters Unsmart Smart OCPP 1.6J
1
Maximum Power 7.4kW & 22kW
7.4kW/22kW
7.4kW/22kW
7.4kW/22kW
2
Input Voltage/Output voltage
AC230/AC400 1-Phase/3-Phase
AC230/AC400 1-Phase/3-Phase
AC230/AC400 1-Phase/3-Phase
3
Input frequency
50/60Hz
50/60Hz
50/60Hz
4
Tethered/Socket
Tethered/Socket
Tethered/Socket
Tethered/Socket
5
Plug
Type 2
Type 2
Type 2
6
Cable length
6m
6m
6m
7
Display
LED Lights
LED Lights
LED Lights
8
RFID
Yes
Yes
Yes
9
Wi-Fi
No
Yes
Yes
10
Bluetooth
No
Yes
Yes
11
Over Voltage & Under Voltage Protection
Yes
Yes
Yes
12
Emergency Stop
Yes
Yes
Yes
13
Over Current Protection
Yes
Yes
Yes
14
CP Signal Short Circuit protection
Yes
Yes
Yes
15
Over Temperature Protection
Yes
Yes
Yes
16
Lightning Protection
Yes
Yes
Yes
17
Contactor Adhesion Protection
Yes
Yes
Yes
17
Protection degree
IP65
IP65
IP65
19
IK protection
IK10
IK10
IK10
20
DLB
No
No
Option

Main Features and Functions

  • CE Compliant
  • For both indoor and outdoor use, the EV charger includes a patented IP65 design enclosure.
  • EV charger dimensions H380mm*W169mm*D151/201mm
  • Gross weight - 5Kg/7Kg
  • The type-2 charging connector makes it highly flexible and compatible with all-electric vehicles.
  • Plug and start charging automatically.
  • Important areas for fire prevention include built-in temperature sensors.
  • The ramp-down stop current charging mode shields EV batteries from damage.
  • EV charger output power can be adjusted from 16 amps up to 32 amps.
  • Contactor Adhesion Protection- When the contactor in the charger is stuck due to the current the charger wires in the socket-type charger will be live, bringing the danger electric shock to people. The charger with Contact Adhesion Protection avoids danger.

Dynamic Load Balancing (DLB)

DLB is available for home use. When the EV charger is working with other household appliances at the same time it can maintain the total dynamic balance of the total household current and ensure the safety of electricity to avoid home overload.

Smart Apps

  • EV charging controlled by smart App via Bluetooth or WIFI connection.
  • View charging data and status
  • Setup various charging configurations
  • Scheduled charging
  • View historical charging records
  • Setting monthly maximum charging values
  • Firmware update

Smart Chargers

We give warranty period of 24 months after the date of purchase.

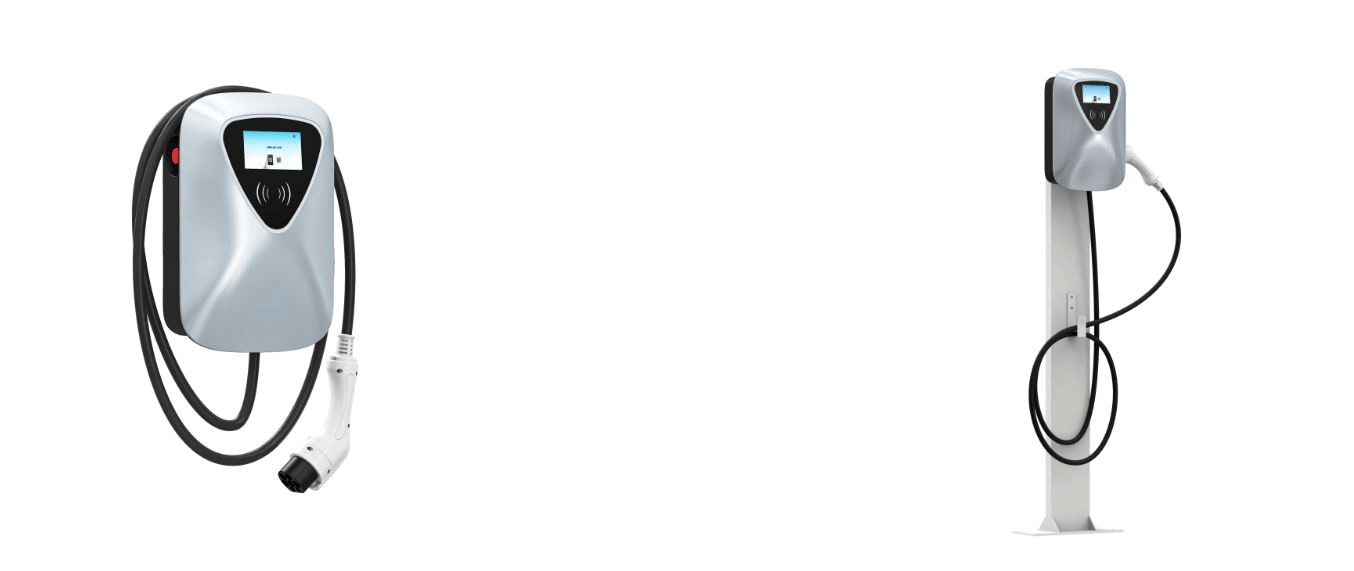

Model iEGNS1-ENCAC007 iEGNS1-ENCAC011 iEGNS1-ENCAC022
Power Input
Input Type
1-Phase
3-Phase
3-Phase
Input Wiring Scheme
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage

220VAC±15%-Euro/
240VAC±15%-US

380VAC±15%-Euro/
240VAC±15%-US
AC380V±15%
Grid Frequency
50Hz or 60Hz
50Hz or 60Hz
Power Output
Output Voltage

220VAC±15%-Euro/
240VAC±15%-US

380VAC±15%-Euro/
240VAC±15%-US
AC380V±15%
Maximum Current
0-32A
0-16A
0-32A
Rated Power
7KW
11KW
22KW
User Interface
Charge Connector

Type1 ,Type 2 ,
GB/T or ChadeMo
for optional
Cable Length
5m or Optional
LED Indicator
Green/Blue/Red
LCD Display

4.3 Inch Touch Color
Screen(Optional)
RFID Reader
ISO/IEC 14443
Start Mode

Plug & Charge/RFID
Card/APP
Communication
Backend

Bluetooth / Wi-Fi/
Cellular(Optional)/
Ethernet(Optional)
Charging Protocol
OCPP-1.6J
Safety & Certification
Energy Metering

Embedded Meter
Circuit Component
With 1% accuracy
Residual Current Device

DC 6mA+Type A
AC 30mA
Ingress Protection
IP54
Impact Protection
IK10
Cooling method
Natural Cooling
Electrical Protection

Over/Under
Voltage Protection,
Over Current
Protection,
Short Circuit protection,
Over/Under
Temperature Protection,
Lightning Protection,
Ground Protection
Certification
CE Rosh
Certification and Conformity

IEC61851-1,
IEC62196-1/-2,
SAE J1772
Environment
Mounting
Wall-mount/Pole-mount
Storage Temperature
-40℃ - +85℃
Operating Temperature
-30℃ - +50℃
Max. Operating Humidity

0-95%,
Non-condensing
Max. operating altitude
2000m
Mechanical
Product Dimension

348mm*258mm*165mm
(W*D*H）
Package Dimensio

412mm*302mm*252mm
(W*D*H）
Weight

4kg(Net ) / 14kg(Gross)
Accessory

Cable Holder,
Pedestal(Optional)
iEng AC EV Chargers
iEng AC EV Chargers

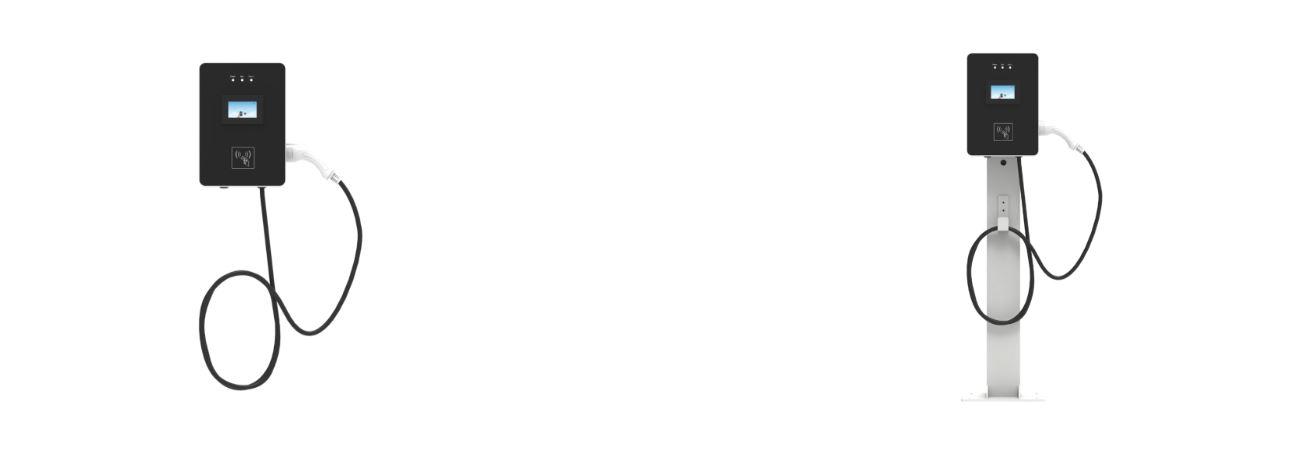

Model iEGNS2-ENC/AC007 iEGNS1-ENCAC011 iEGNS1-ENCAC022
Power Input
Input Type
1-Phase
3-Phase
3-Phase
Input Wiring Scheme
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage

220VAC±15%-Euro/
240VAC±15%-US

380VAC±15%-Euro/
240VAC±15%-US
AC380V±15%
Grid Frequency
50Hz or 60Hz
50Hz or 60Hz
Power Output
Output Voltage

220VAC±15%-Euro/
240VAC±15%-US

380VAC±15%-Euro/
240VAC±15%-US
AC380V±15%
Maximum Current
0-32A
0-16A
0-32A
Rated Power
7KW
11KW
22KW
User Interface
Charge Connector

Type1 ,Type 2 ,
GB/T or ChadeMo
for optional
Cable Length
5m or Optional
LED Indicator
Green/Blue/Red
LCD Display

4.3 Inch Touch Color
Screen(Optional)
RFID Reader
ISO/IEC 14443 RFID Card Reader
Start Mode

Plug & Charge/RFID
Card/APP
Communication
Backend

Bluetooth / Wi-Fi/
Cellular(Optional)/
Ethernet(Optional)
Charging Protocol
OCPP-1.6J
Safety & Certification
Energy Metering

Embedded Meter
Circuit Component
With 1% accuracy
Residual Current Device

DC 6mA+Type A
AC 30mA
Ingress Protection
IP54
Impact Protection
IK10
Cooling method
Natural Cooling
Electrical Protection

Over/Under
Voltage Protection,
Over Current
Protection,
Short Circuit protection,
Over/Under
Temperature Protection,
Lightning Protection,
Ground Protection
Certification
CE Rosh
Certification and Conformity

IEC61851-1,
IEC62196-1/-2,
SAE J1772
Environment
Mounting
Wall-mount/Pole-mount
Storage Temperature
-40℃ - +85℃
Operating Temperature
-30℃ - +50℃
Max. Operating Humidity

0-95%,
Non-condensing
Max. operating altitude
2000m
Mechanical
Product Dimension

418mm*293mm*140mm
(W*D*H）
Package Dimensio

490mm*345mm*229mm
(W*D*H）
Weight

7.5kg(Net ) / 17.5kg(Gross)
Accessory

Cable Holder,
Pedestal(Optional)
iEng AC EV Chargers
iEng AC EV Chargers

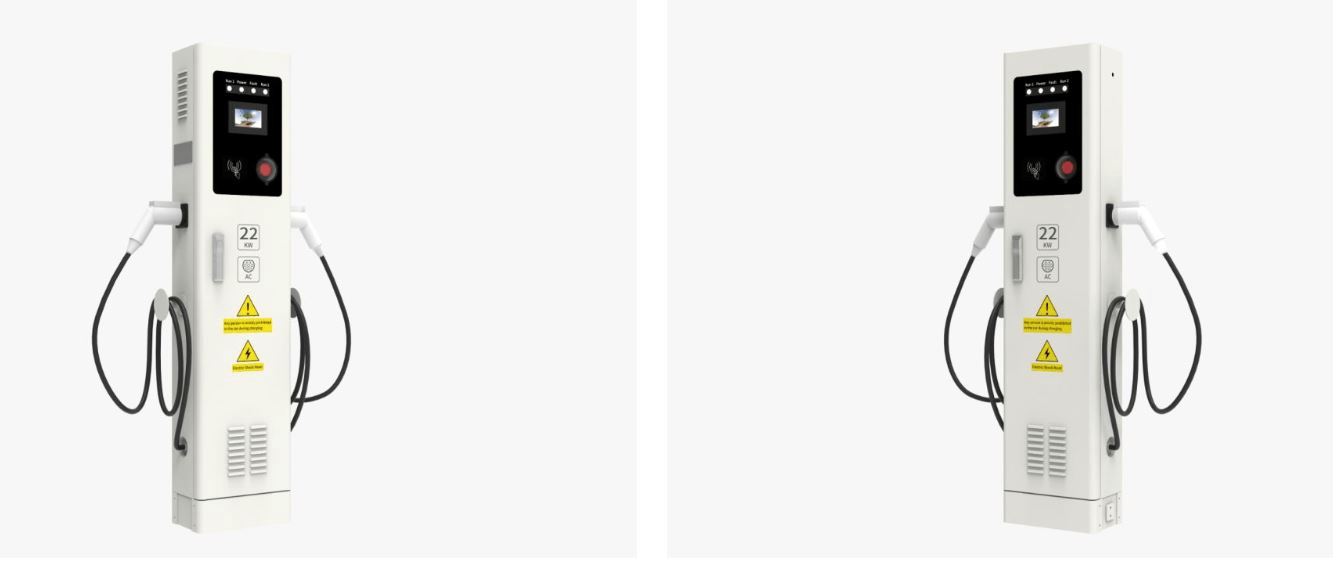

Model iEGNS2-ENC/AC007 iEGNS1-ENCAC011 iEGNS1-ENCAC022
Power Input
Input Type
1-Phase
3-Phase
3-Phase
Input Wiring Scheme
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage

220VAC±15%-Euro/
240VAC±15%-US

380VAC±15%-Euro/
240VAC±15%-US
AC380V±15%
Grid Frequency
50Hz or 60Hz
50Hz or 60Hz
Power Output
Output Voltage

220VAC±15%-Euro/
240VAC±15%-US

380VAC±15%-Euro/
240VAC±15%-US
AC380V±15%
Maximum Current
0-32A
0-16A
0-32A
Rated Power
7KW
11KW
22KW
User Interface
Charge Connector

Type1 ,Type 2 ,
GB/T or ChadeMo
for optional
Cable Length
5m or Optional
LED Indicator
Green/Blue/Red
LCD Display

4.3 Inch Touch Color
Screen(Optional)
RFID Reader
ISO/IEC 14443 RFID Card Reader
Start Mode

Plug & Charge/RFID
Card/APP
Communication
Backend

Bluetooth / Wi-Fi/
Cellular(Optional)/
Ethernet(Optional)
Charging Protocol
OCPP-1.6J
Safety & Certification
Energy Metering

Embedded Meter
Circuit Component
With 1% accuracy
Residual Current Device

DC 6mA+Type A
AC 30mA
Ingress Protection
IP54
Impact Protection
IK10
Cooling method
Natural Cooling
Electrical Protection

Over/Under
Voltage Protection,
Over Current
Protection,
Short Circuit protection,
Over/Under
Temperature Protection,
Lightning Protection,
Ground Protection
Certification
CE Rosh
Certification and Conformity

IEC61851-1,
IEC62196-1/-2,
SAE J1772
Environment
Mounting
Wall-mount/Pole-mount
Storage Temperature
-40℃ - +85℃
Operating Temperature
-30℃ - +50℃
Max. Operating Humidity

0-95%,
Non-condensing
Max. operating altitude
2000m
Mechanical
Product Dimension

340mm*201mm*1500mm
(W*D*H）
Package Dimensio

550mm*350mm*1665mm
(W*D*H）
Weight

67.5kg(Net ) / 87.5kg(Gross)
Accessory

Cable Holder,
Pedestal(Optional)
